Twin Screw Pumps

Twin Screw Pumps are a class of positive displacement pumps that are very effective and versatile in a wide range of industrial settings. The unusual shape of these pumpstwo intermeshing screws housed inside a cylindrical housinggives rise to their name. The screws are perfect for precisely managing viscous and non-viscous fluids because they revolve, trapping and moving the fluid from the intake to the exit. One of the main benefits of twin screw pumps is their constant, non-pulsating flow, which minimizes the possibility of shear or damage to delicate materials and guarantees a smooth and steady fluid transfer.

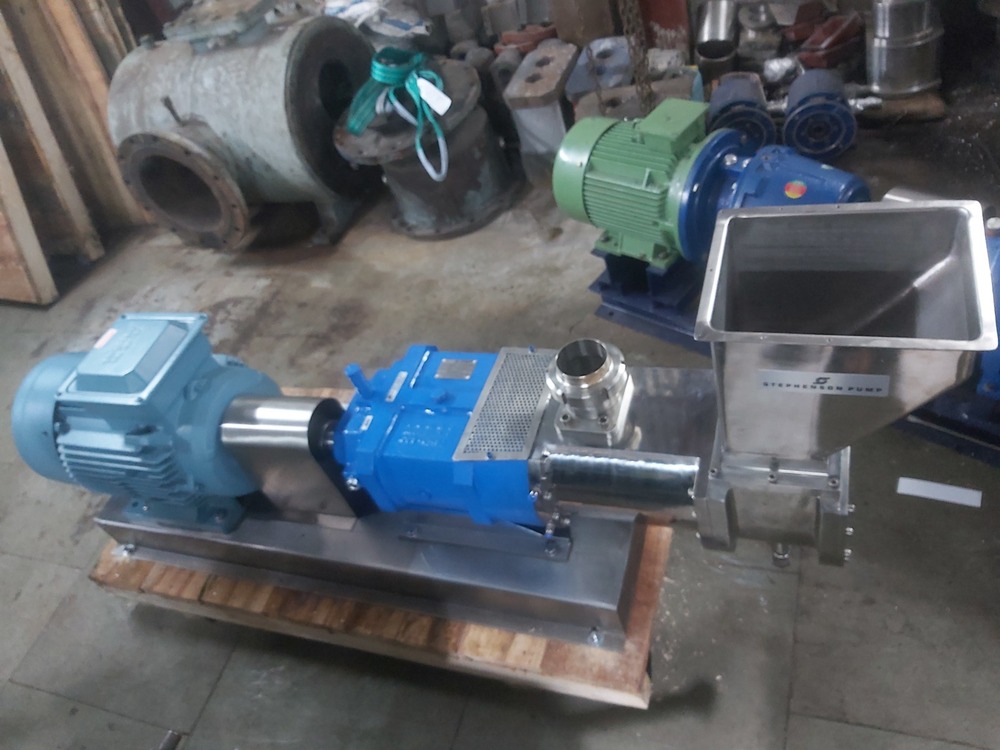

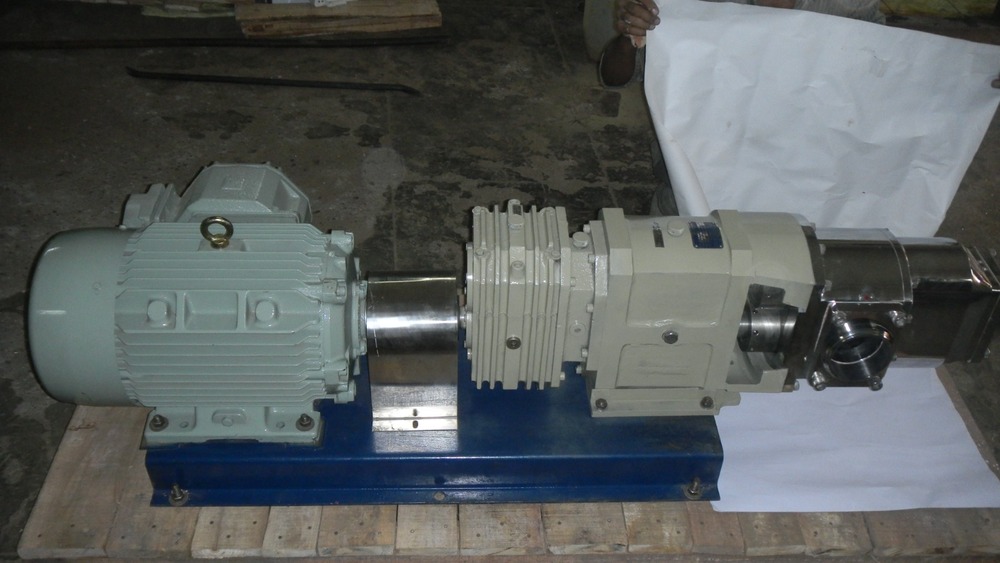

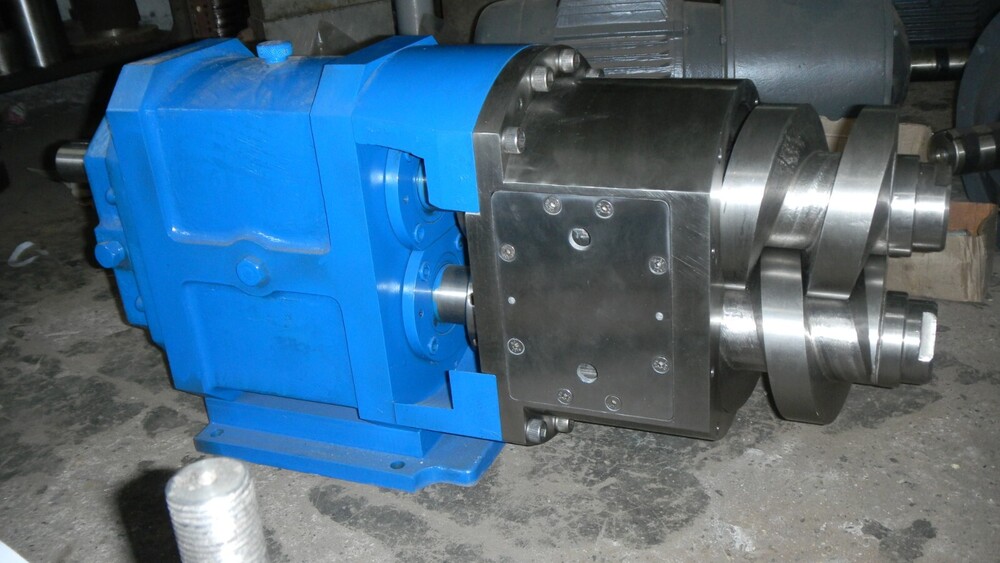

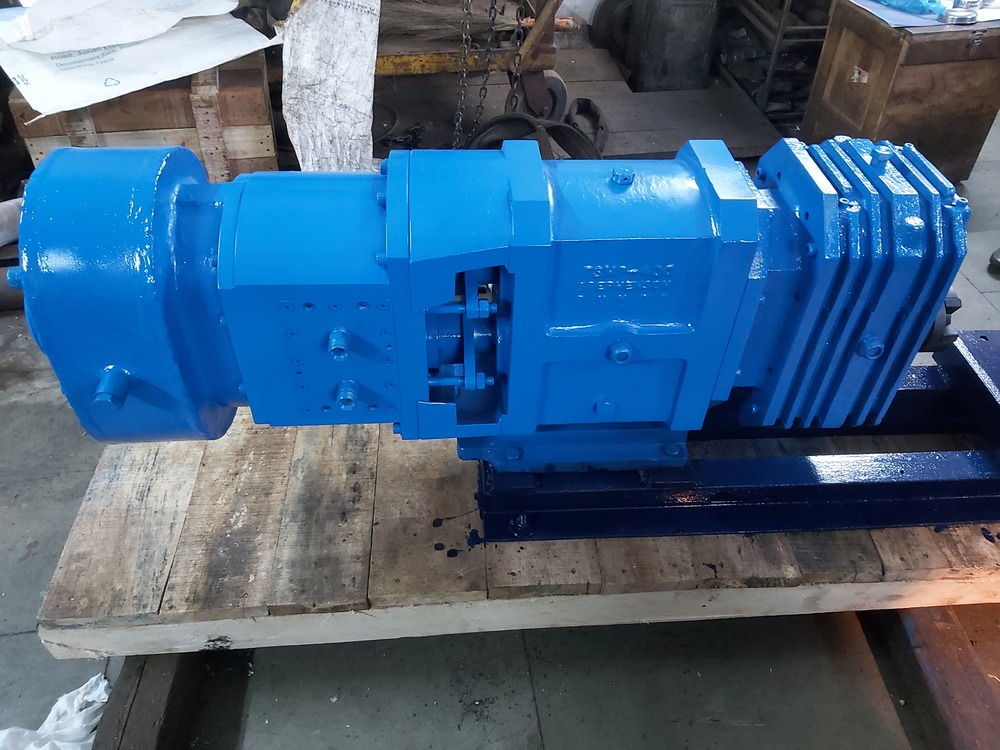

TSMP Twin Screw Pump

MOQ : 10 Units

  • Application
  • Other, Chemical, Food, Oil, Beverage, Marine, Cosmetics, Pharmacy
  • Caliber
  • Customizable
  • Capacity
  • 0.5 m3/h to 550 m3/h
  • Control System
  • Automatic / Manual
  • Discharge Pressure
  • up to 2.5 MPa
  • Features
  • Non Pulsating Flow, High Efficiency, CIP/SIP Capable, Handles Solids
  • Flow Rate
  • 0.5 m3/h to 550 m3/h
  • Frequency
  • 50Hz / 60Hz
  • Fuel Type
  • Other, Electric
  • Head Size
  • up to 150 m
  • Inlet/Outlet
  • DN 25 - DN 250
  • Material
  • Stainless Steel / Carbon Steel / Cast Iron
  • Max Suction
  • 0.08 MPa
  • Mounting Type
  • Horizontal / Vertical
  • Noise Level
  • Low Noise Operation
  • Power
  • Other, 1.5 kW to 200 kW
  • Pressure
  • Other, up to 2.5 MPa
  • Priming
  • Self-priming
  • Pump Type
  • Other, Twin Screw Pump
  • Seals Type
  • Mechanical Seal / Packed Gland
  • Speed
  • up to 3600 rpm
  • Standard
  • ISO 9001, CE
  • Structure
  • Other, Horizontal / Vertical Mounting
  • Suction Type
  • Axial Suction
  • Theory
  • Other, Twin Screw Positive Displacement Pump
  • Usage
  • Other, Transfer of viscous/liquid materials
  • Voltage
  • 380V / 415V
  • Working Temperature
  • -20C to 200C

TSDF Double Flow Twin Screw Pump

MOQ : 10 Units

  • Application
  • Other, Transfer of Viscous or Light Liquids, Food, Pharma, Marine, Oil & Gas
  • Caliber
  • DN 50 - DN 300
  • Capacity
  • 10 to 900 m3/h
  • Control System
  • On/Off, VFD Compatible
  • Discharge Pressure
  • Up to 16 Bar
  • Features
  • Low Pulsation, Dry Running Capability, Handles Abrasive & Non-Lubricating Fluids
  • Flow Rate
  • 10 to 900 m3/h
  • Frequency
  • 50 Hz / 60 Hz
  • Fuel Tank Capacity
  • N/A (Electric Drive)
  • Fuel Type
  • Other, Electric Driven
  • Head Size
  • Up to 16 Bar
  • Inlet/Outlet
  • Flanged (DIN/ANSI Standard)
  • Material
  • Cast Iron, Stainless Steel, Alloy Steel
  • Max Suction
  • Up to 8 Meter
  • Mounting Type
  • Horizontal
  • Noise Level
  • <75 dB(A)
  • Power
  • Other, 7.5 kW to 200 kW
  • Pressure
  • Other, Up to 16 Bar
  • Priming
  • Self Priming
  • Pump Type
  • Other, Twin Screw Pump
  • Seals Type
  • Mechanical Seal / Gland Packing
  • Speed
  • Up to 3600 RPM
  • Standard
  • ISO 5199 / API 676
  • Structure
  • Other, Twin Screw, Double Flow
  • Suction Type
  • Double Flow
  • Theory
  • Other, Positive Displacement
  • Usage
  • Other, Industrial / Chemical / Oil Transfer
  • Voltage
  • 415V
  • Working Temperature
  • -20C to 180C

TSO Series Twin Screw Pump

MOQ : 10 Units

  • Application
  • Other, Transfer of Viscous & Non-viscous Liquids
  • Caliber
  • 50 mm to 200 mm
  • Capacity
  • Up to 500 m3/hr
  • Control System
  • Optional VFD
  • Discharge Pressure
  • Up to 40 Bar
  • Features
  • Non-pulsating Flow, Handles Solids & Abrasives
  • Flow Rate
  • 1~500 m3/hr
  • Frequency
  • 50 Hz / 60 Hz
  • Fuel Type
  • Other, Electric
  • Head Size
  • 1~40 Bar
  • Inlet/Outlet
  • DN 50 / DN 50 (mm)
  • Material
  • Cast Iron / Stainless Steel
  • Max Suction
  • Up to 8 m
  • Mounting Type
  • Horizontal
  • Noise Level
  • Low
  • Power
  • Other, 0.75~250 kW
  • Pressure
  • Other, Up to 40 Bar
  • Priming
  • Self Priming
  • Pump Type
  • Other, Twin Screw Pump
  • Seals Type
  • Mechanical Seal
  • Speed
  • Up to 3600 rpm
  • Standard
  • API 676 / DIN 24255
  • Structure
  • Other, Horizontal Foot Mounted
  • Suction Type
  • Positive Suction
  • Theory
  • Other, Twin Screw Positive Displacement
  • Usage
  • Other, Industrial, Oil, Marine, Food Processing
  • Voltage
  • 415 V, 3 Phase
  • Working Temperature
  • Up to 250C

Screw Pumps

Price 600000.00 INR/ Unit

MOQ : 1 Unit

  • Color
  • White
  • Material
  • Mild Steel
  • Product Type
  • Screw Pumps
  • Size
  • Different Size
  • Usage
  • Industrial

Crude Oil Pumps

Price 600000 INR/ Unit

MOQ : 1 Unit

  • Color
  • White
  • Material
  • Mild Steel
  • Product Type
  • Crude Oil Pumps
  • Size
  • Different Size
  • Usage
  • Industrial

Twin Screw Pump With Auger

MOQ : 10 Units

  • Application
  • Other, Viscous Fluids, Slurries, Pastes
  • Caliber
  • 80 mm Inlet / 65 mm Outlet
  • Capacity
  • Up to 40 m3/hr
  • Control System
  • Optional VFD
  • Discharge Pressure
  • Up to 16 Bar
  • Features
  • CIP/SIP Capable, Non-Clog Design, Reversible Flow
  • Flow Rate
  • Up to 40 m3/hr
  • Frequency
  • 50/60 Hz
  • Fuel Type
  • Other, Electric
  • Head Size
  • Up to 16 Bar
  • Inlet/Outlet
  • DN80 / DN65 Flanged
  • Material
  • Stainless Steel 304 / 316
  • Max Suction
  • Up to 7 meters
  • Mounting Type
  • Baseplate Mounted
  • Noise Level
  • <75 dB(A)
  • Power
  • Other, 1.5 to 15 kW
  • Pressure
  • Other, Up to 16 Bar
  • Priming
  • Self-Priming
  • Pump Type
  • Other, Twin Screw Pump
  • Seals Type
  • Mechanical Seal / Gland Packing
  • Speed
  • Up to 1800 RPM
  • Standard
  • DIN / ANSI
  • Structure
  • Other, Twin Screw with Auger
  • Suction Type
  • Flooded / Suction Lift
  • Theory
  • Other, Positive Displacement Pump
  • Usage
  • Other, Industrial, Food, Chemical, Dairy, Pharma
  • Voltage
  • 415 V, 3 Phase
  • Working Temperature
  • Up to 120C

Mild Steel Twin Screw Pump

Price 135000 INR/ Unit

MOQ : 1 Unit

  • Color
  • Silver
  • Material
  • Mild Steel
  • Product Type
  • Mild Steel Twin Screw Pump
  • Size
  • Different Size
  • Usage
  • Industrial
  • Weight
  • 10 Kilograms (kg)

Bitumen Pumps

Price 600000 INR/ Unit

MOQ : 1 Unit

  • Color
  • White
  • Material
  • Mild Steel
  • Product Type
  • Bitumen Pumps
  • Size
  • Different Size
  • Usage
  • Industrial

Electric Twin Screw Pump

Price 180000 INR/ Unit

MOQ : 1 Unit

  • Color
  • Blue
  • Material
  • Stainless Steel
  • Product Type
  • Electric Twin Screw Pump
  • Size
  • Different Size
  • Usage
  • Industrial

Twin Screw Pumps

Price 195000 INR/ Unit

MOQ : 1 Unit

  • Color
  • Silver
  • Material
  • Stainless Steel
  • Product Type
  • Stephenson Hygienic Twin Screw Pumps
  • Size
  • Different Size
  • Usage
  • Industrial

Steel Twin Screw Pump

Price 220000.00 INR/ Unit

MOQ : 1 Unit

  • Color
  • Silver and Blue
  • Material
  • Mild Steel
  • Product Type
  • Steel Twin Screw Pump
  • Size
  • Different Size
  • Usage
  • Industrial

Metal Twin Screw Pump

Price 280000 INR/ Unit

MOQ : 1 Unit

  • Color
  • Silver
  • Material
  • Mild Steel
  • Product Type
  • Metal Twin Screw Pump
  • Size
  • Different Size
  • Usage
  • Industrial

Hygienic Pumps

Price 230000 INR/ Unit

MOQ : 1 Unit

  • Color
  • Silver
  • Material
  • Mild Steel
  • Product Type
  • Hygienic Pumps
  • Size
  • Different Size
  • Usage
  • Industrial

Industrial Twin Screw Pump

Price 600000 INR/ Unit

MOQ : 1 Unit

  • Color
  • White
  • Material
  • Mild Steel
  • Product Type
  • Industrial Twin Screw Pump
  • Size
  • Different Size
  • Usage
  • Industrial
